SHODA - W250HC

Inventory number：812091

Brand：SHODA

Model：W250HC

Origin：捷克

Location：China

Year：1988

Create Time：2026-05-26

Specifications:

Machining height: 4150 mm
Machining length: 16,000 mm

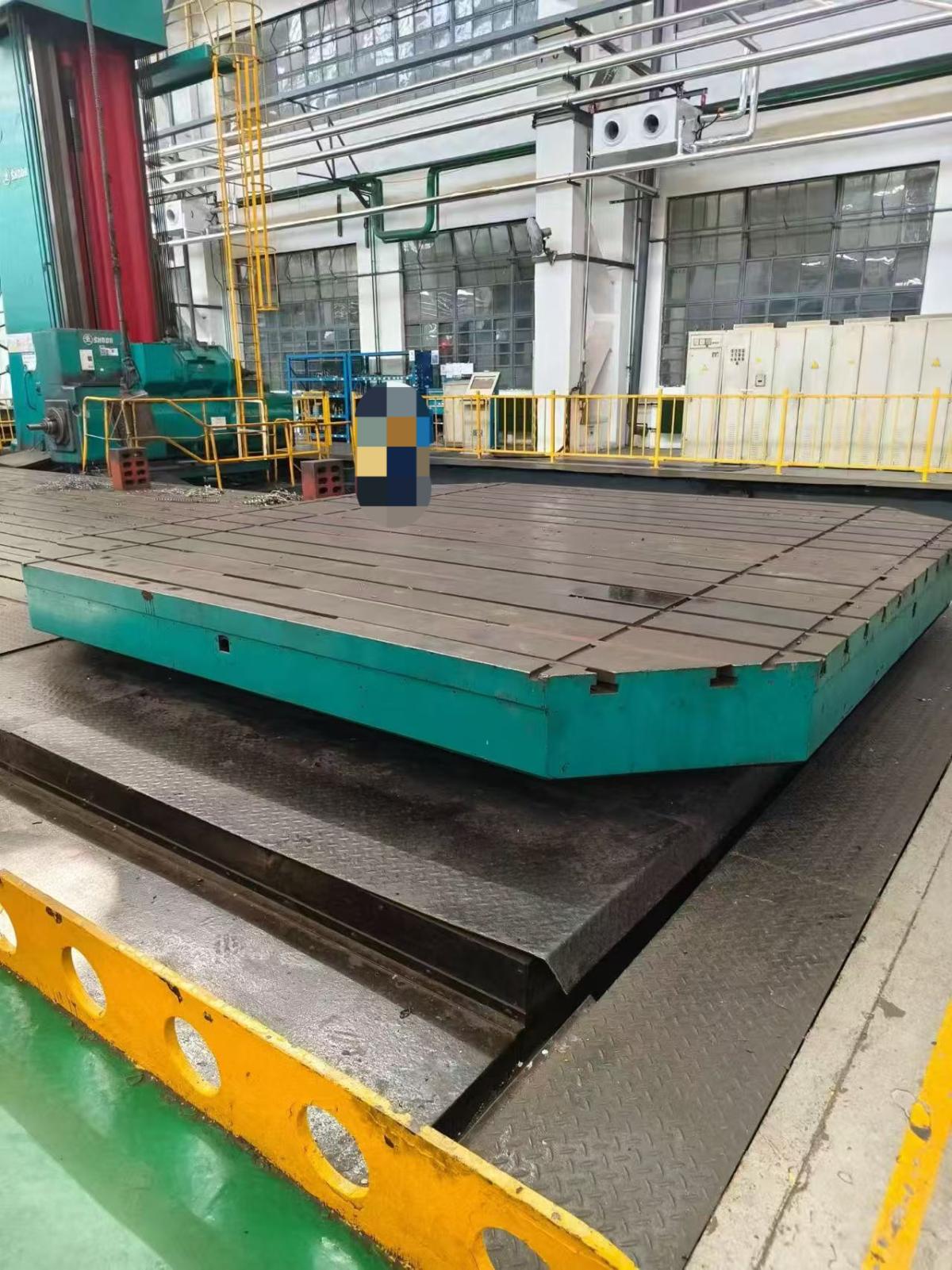

Rotary worktable size: 4000 × 4000 mm
Drive system: Ball screw drive
Function: Automatic tool clamping and unclamping
Spindle type: Boring spindle, diameter 250 mm
Spindle taper: ISO 60
Ram size: 520 × 520 mm
X-axis travel (column horizontal movement): 12,000 mm
Y-axis travel (headstock vertical movement): 4000 mm
Z-axis travel (boring bar movement): 1000–2000 mm
W-axis travel (ram horizontal movement): 1600–2000 mm
V-axis travel (worktable horizontal movement): 3000 mm
Maximum worktable load: 120 tons
