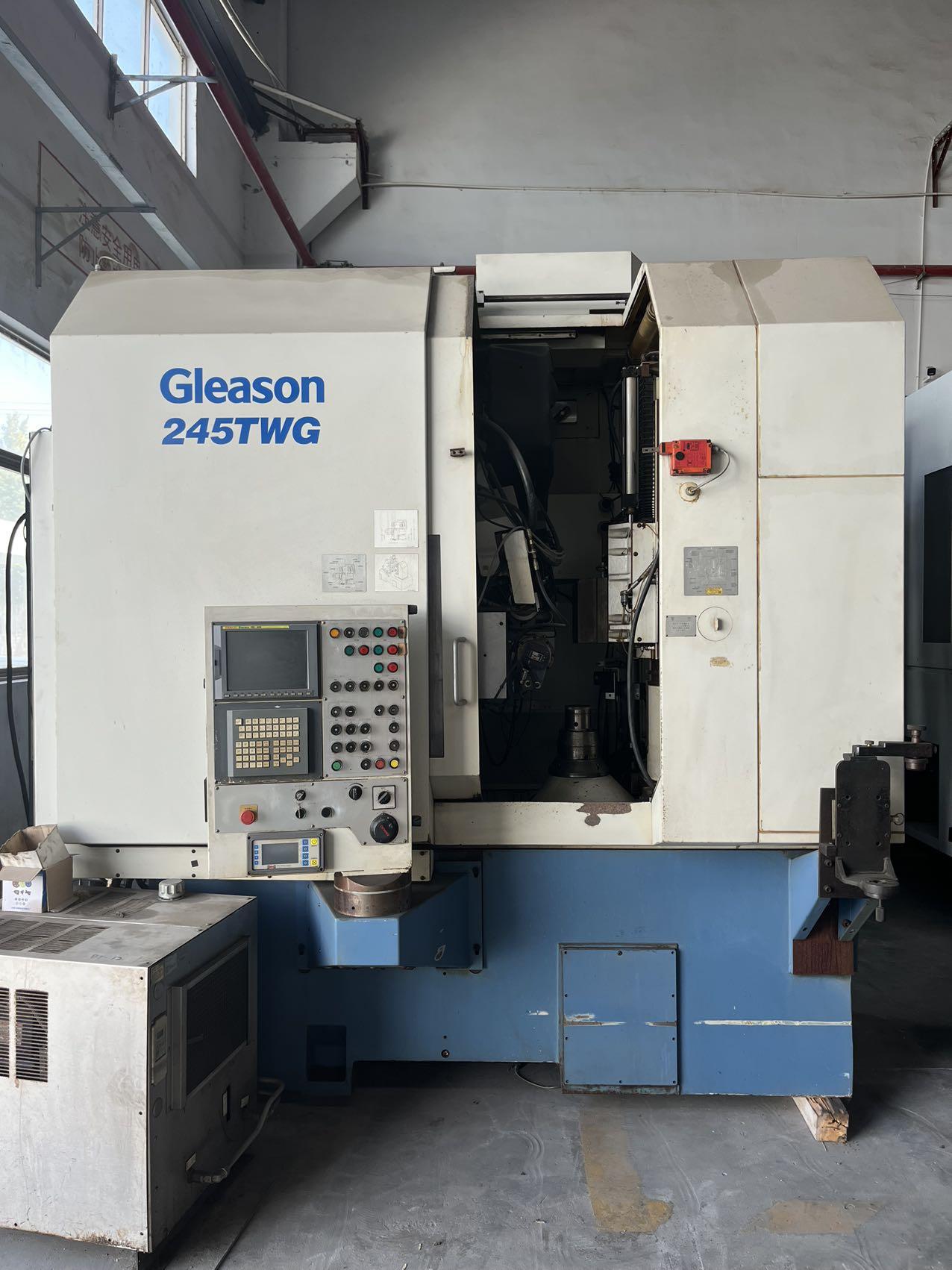

GLEASON - 245TWG

Inventory number：811175

Brand：GLEASON

Model：245TWG

Origin：Germany

Location：China

Year：2003

Create Time：2026-03-10

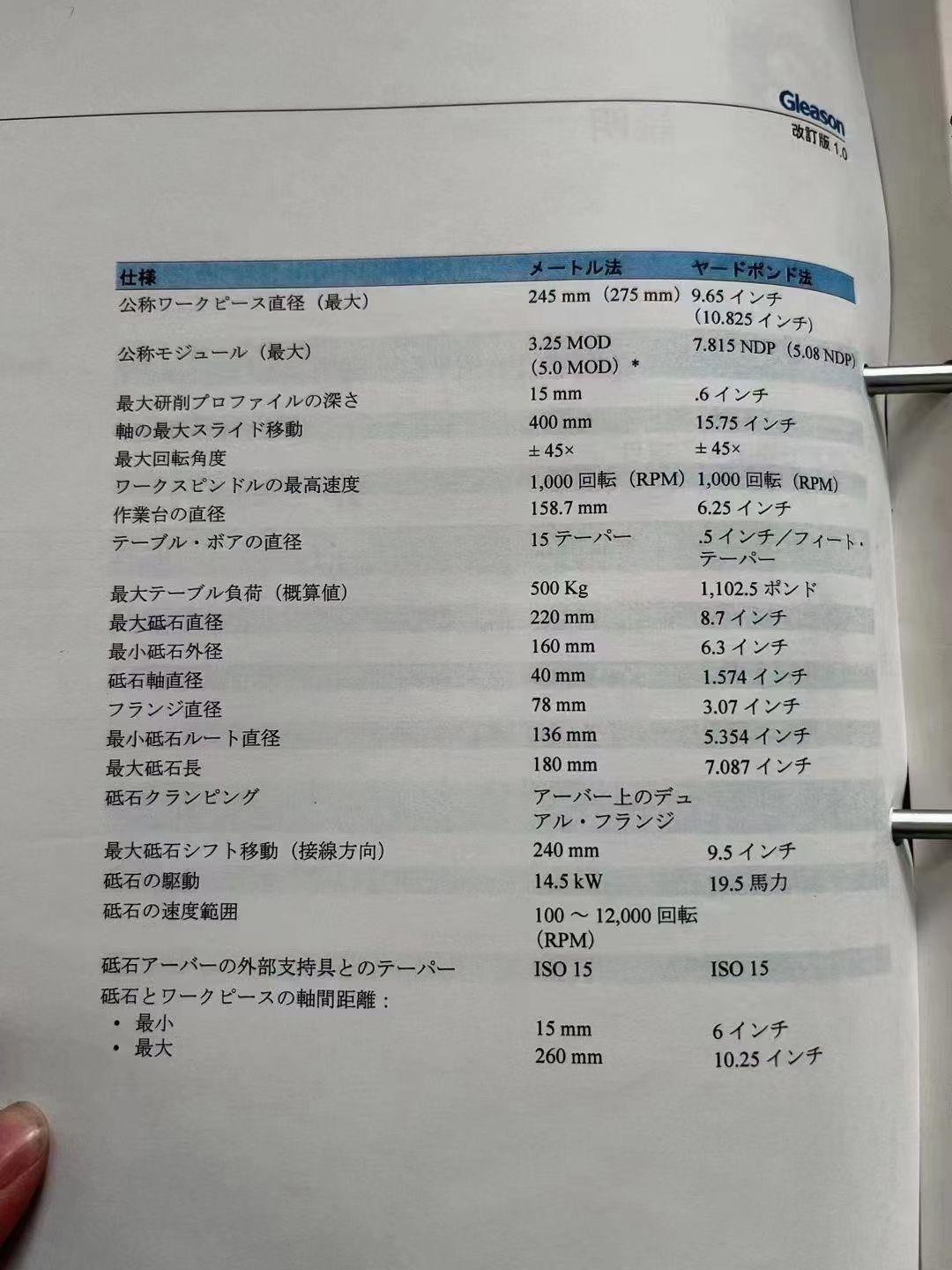

Specifications:

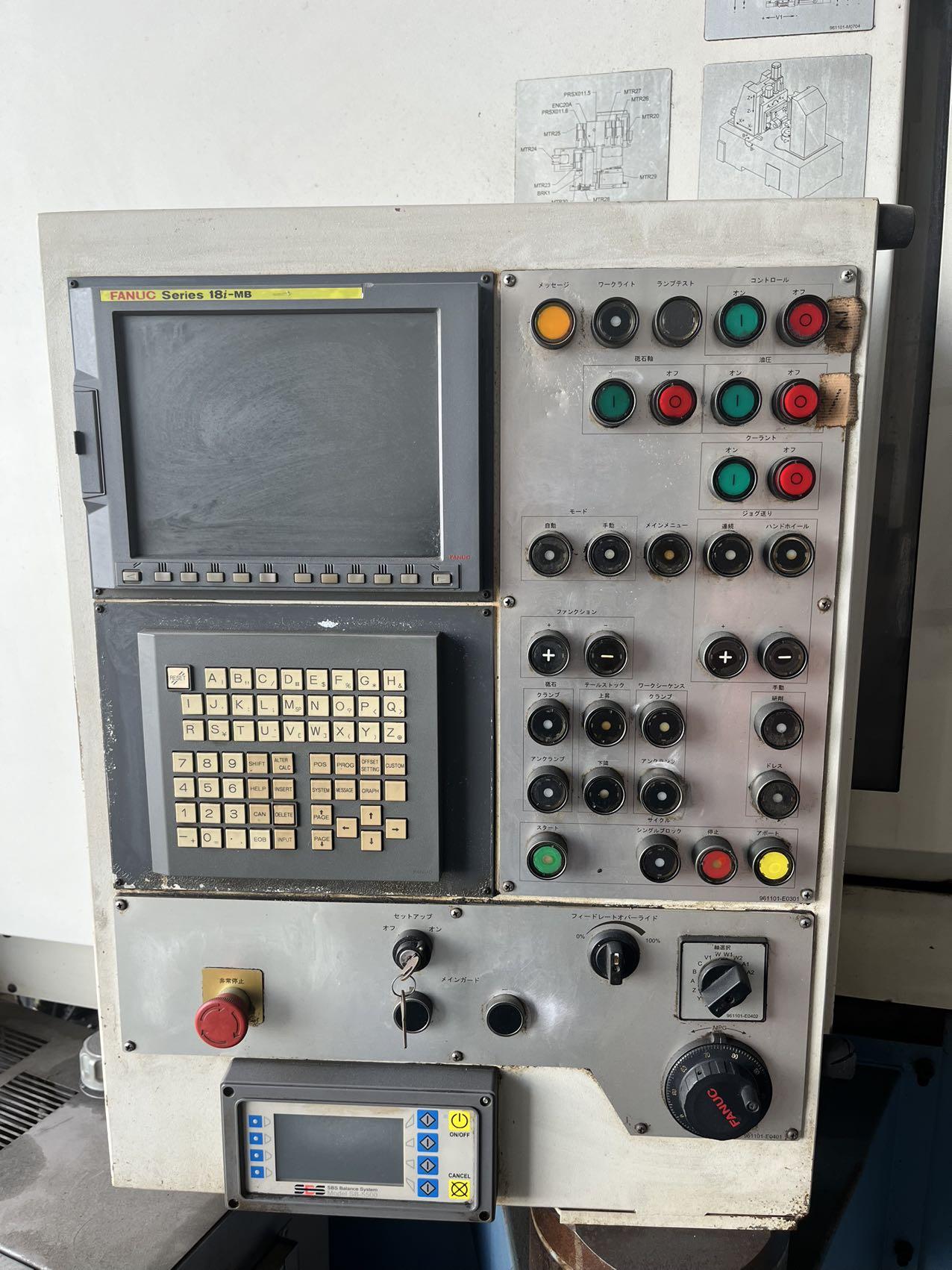

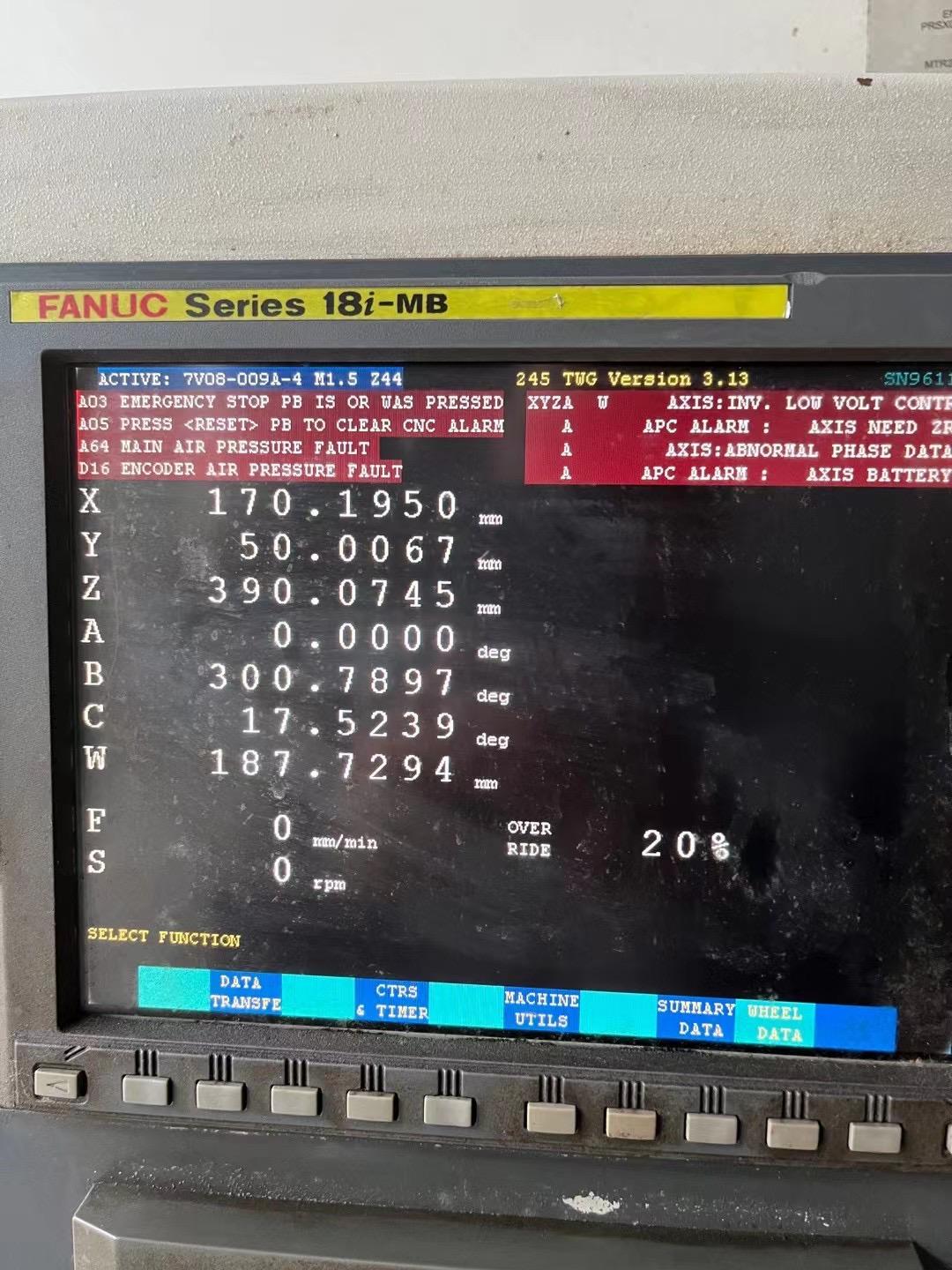

CNC System: FANUC
Maximum modulus: 6
Maximum rotation angle: ±45 degrees
Maximum rotational speed of the grinding wheel shaft: 12,000 RPM
Maximum grinding wheel diameter: 180 mm
Minimum grinding wheel diameter: 136 mm
Maximum grinding depth: 150 mm
Worktable diameter: 158.7 mm
Worktable load: 500 kg
Maximum rotational speed of the worktable: 1,000 RPM
Machining diameter: 260 mm
Minimum machining diameter: 15 mm
Automatic grinding wheel dressing system
